2016 Program Improvements

At Power Line Systems we continually improve our software. Below we list some of the more significant enhancements made during the year 2016. Click here for improvements made in 2015 or here for the most recent enhancements.


PLS-CADD

  • Introducing PLS-CADD/ULTRALITE, a radically simplified edition of PLS-CADD

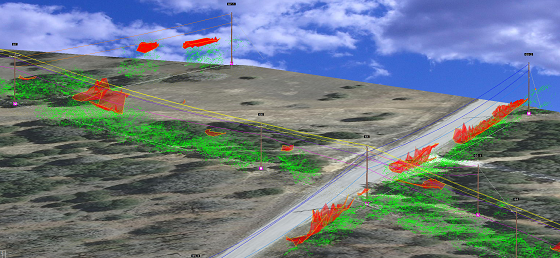

  • PLS-CADD Vegetation Work Sites - Condense thousands of vegetation violations down to a manageable number of places for remediation.

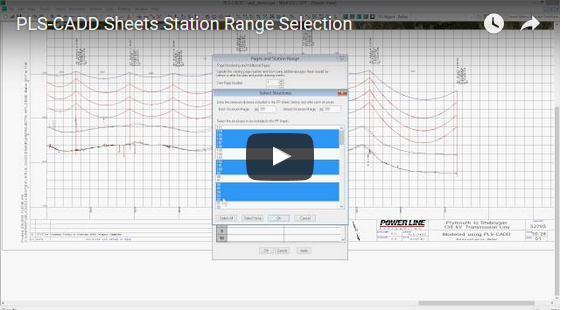

  • P&P sheets may now be created for multiple station ranges that you specify.

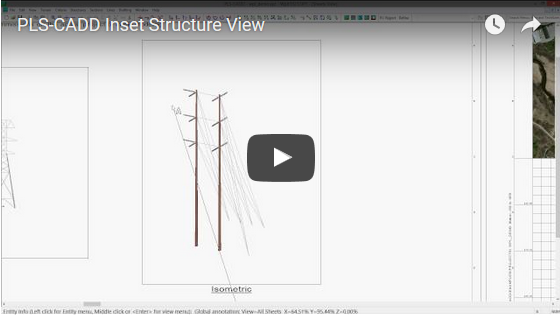

  • Structure Inset Views may be inserted in PLS-CADD.


PLS-POLE

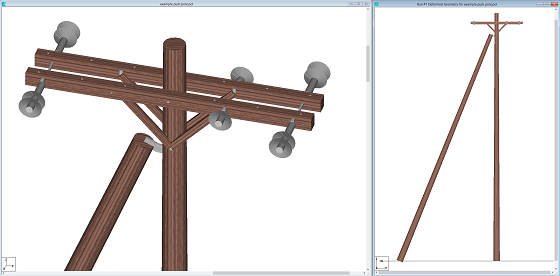

  • Push Brace Modeling in PLS-POLE

  • Improved tubular pole graphics

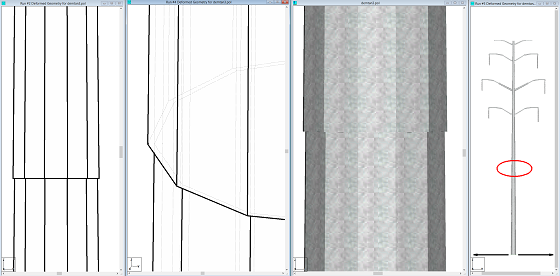

Improved Tubular Pole Graphics

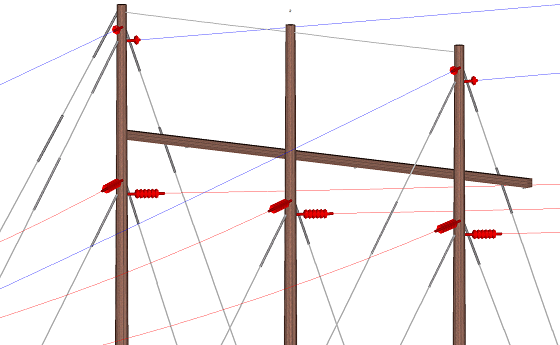

  • Guy Strain Insulator modeling added

  • May now display PLS-CADD wire geometry inside PLS-POLE when using PLS-CADD generated LCA or LIC file.
  • Input reached via Entity Info is now displayed in a "properties-style" dialog with an option to switch to a full table view.
  • Added "EN50341-2-9:2015" (UK NNA) wind/ice model in Loads/Vector Loads and Loads/Wire Loads.
PLS-POLE Displaying Wires from PLS-CADD

TOWER

  • Guy Strain Insulator modeling added

  • May now display PLS-CADD wire geometry inside TOWER when using PLS-CADD generated LCA or LIC file.
  • Input reached via Entity Info is now displayed in a "properties-style" dialog with an option to switch to a full table view.
  • Added "EN50341-2-9:2015" (UK NNA) wind/ice model in Loads/Vector Loads and Loads/Wire Loads.

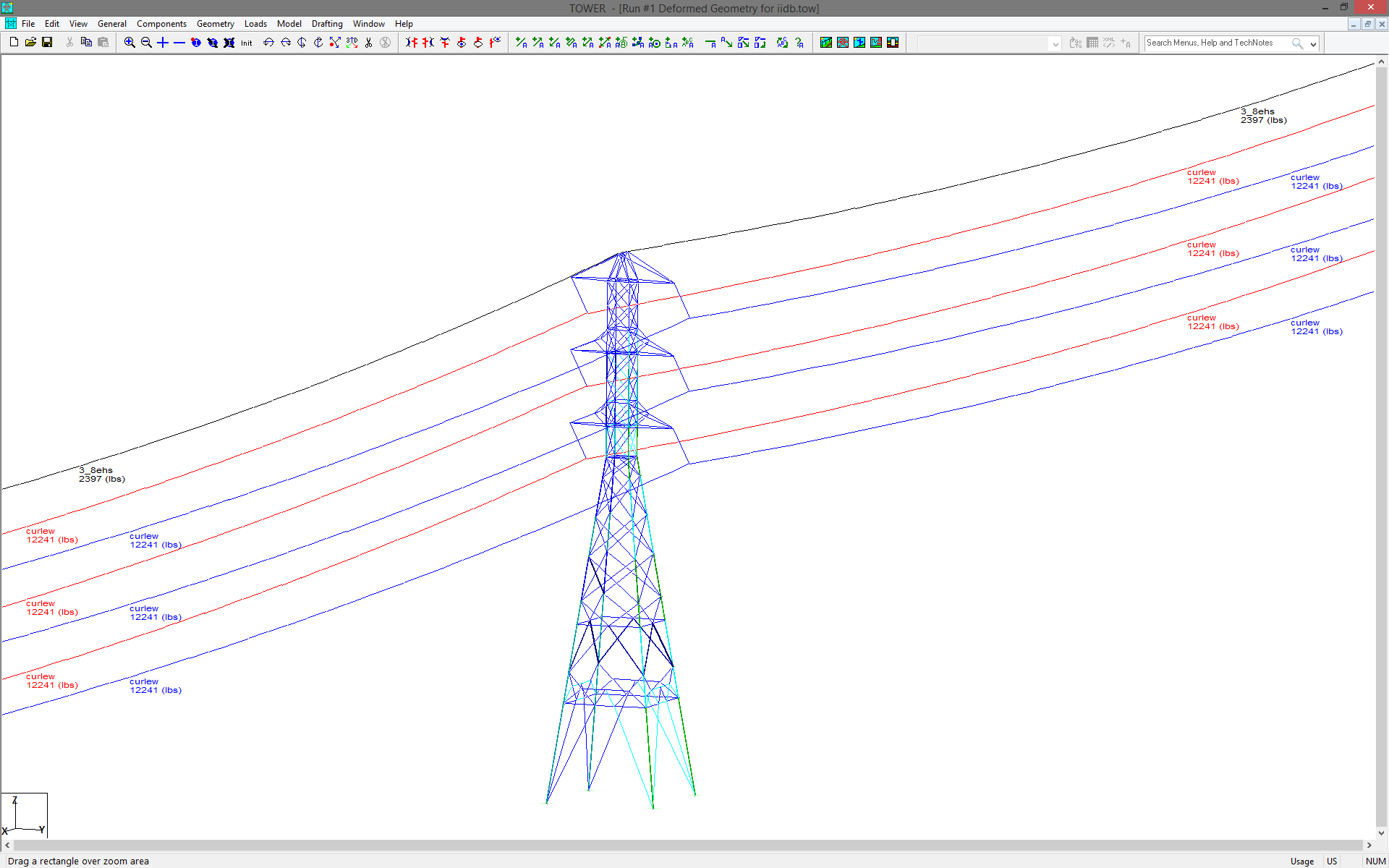

TOWER Displaying Wires from PLS-CADD

  • Ability to render angles with an "L" shape
  • Significant work on Family Manager that improves all aspects of it: importing from other models, performance, flexibilty and resilency.
Angles drawn as angles
