At Power Line Systems we continually improve our software.
Below we list some of the more significant enhancements made during the year 2014.
Click here for improvements made in 2013 or here for the most recent enhancements.
-

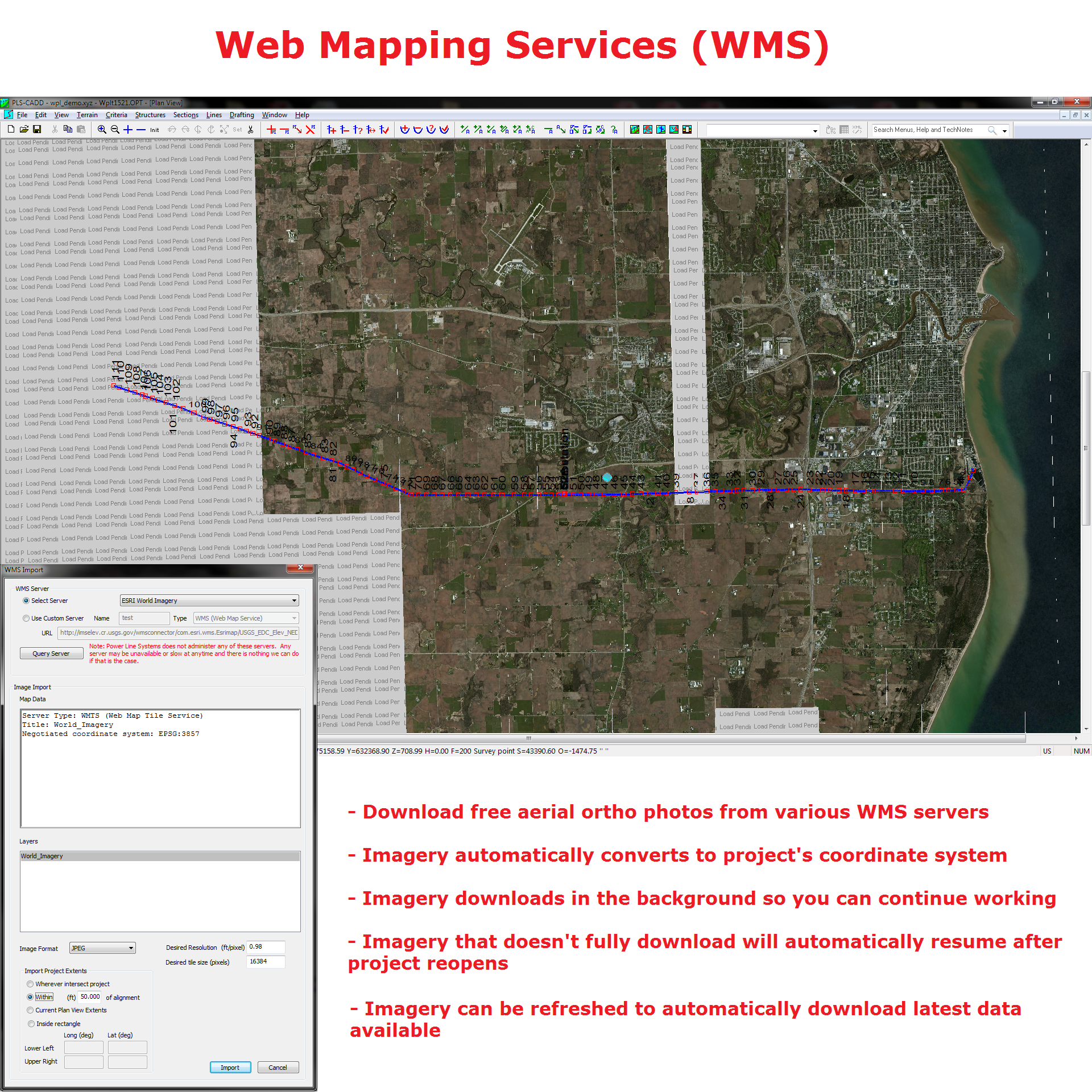

Import of imagery from Web Mapping Services now built in to the Attachment Manager (see the video demonstration).
-

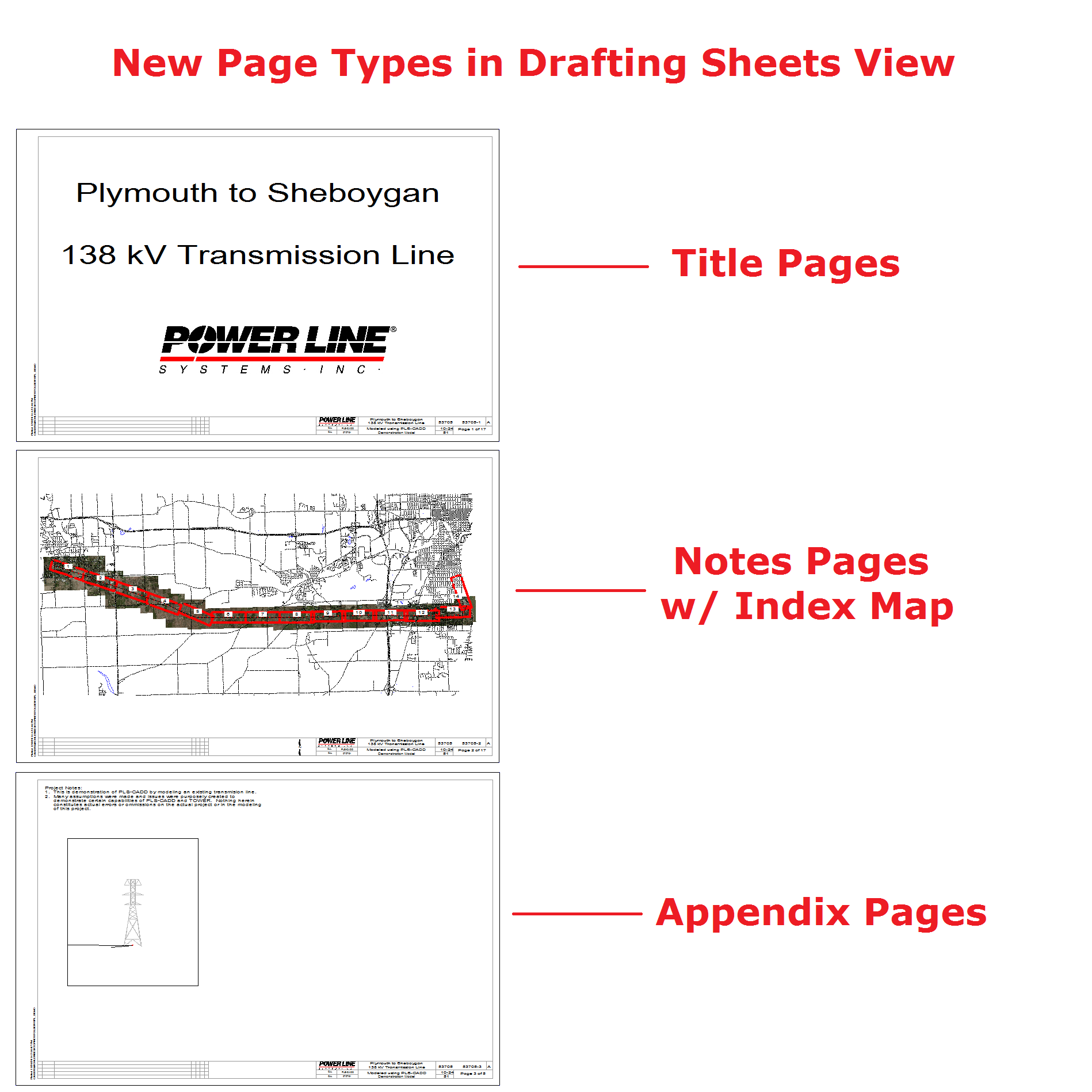

Can now specify how many title, notes and appendix pages to include in the plan and profile sheets. These extra pages can contain attachments, annotation, inset views or a new "Sheet Index Map" (see the video demonstration).
- Improved image attachment support: may now attach TIFF files > 2GB in size, JPEG2000 decoding sped up, and translucency may now bet set for each image.
- Added Terrain/Edit/Merge Points from External File/Merge Points From KML/KMZ Files... for importing terrain data and alignment segments.
- Added support for generating loads as per ISEC-NCR-83.
- Added support for generating loads as per Russia 7th/SNiP (SP 20.13330.2011)
- Version 13.00 released
-

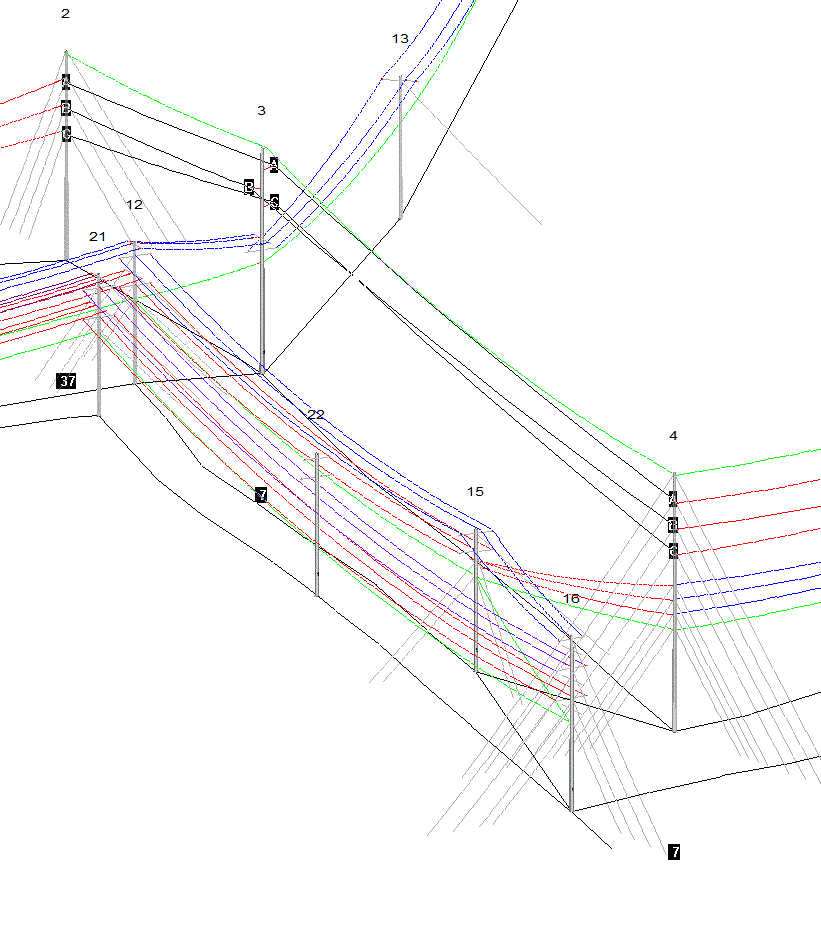

3D Graphical Stringing: May now string wires graphically in any direction (increasing or decreasing station) which enables vastly easier modeling of distribution and substation scenarios (see the video demonstration).
- Report windows may now be freed from the main application window and easily spread across multiple monitors (see the video demonstration)
- Version 13.20 released
- Can now generate loads according to ISEC-NCR-83.
- Can now generate loads according to Russia 7th/SNiP (SP 20.13330.2011).
- Version 13.00 released
- Can now generate loads according to EN50341-1:2012.
- Report windows may now be freed from the main application window and easily spread across multiple monitors (see the video demonstration)
- Version 13.20 released
- Added "ECCS 1985" method for connection rupture check which only implements provisions 10.2-10.5 of ECCS 1985.
- Can now generate loads according to ISEC-NCR-83.
- Enhanced The Family Manager with ability to Import Extensions from another model, allow secondary joints in leg extensions, etc.
- Can now generate loads according to Russia 7th/SNiP (SP 20.13330.2011).
- Version 13.00 released
- Added the Family Manager which enables the design, analysis and optimization of a family of towers with many shared leg and body extensions in a single .tow file (see the video demonstration).
- Report windows may now be freed from the main application window and easily spread across multiple monitors (see the video demonstration)
