At Power Line Systems we continually improve our software.
Below we list some of the more significant enhancements made during the year 2017.
Click here for improvements made in 2016 or here for the most recent enhancements .

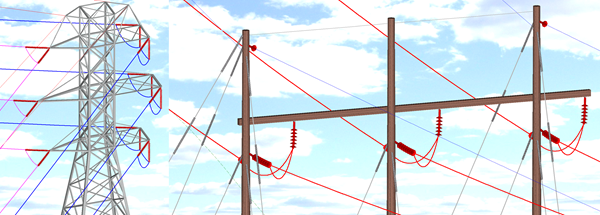

Modeling both rigid and flexible jumpers
Read the Jumpers presentation
VIDEO

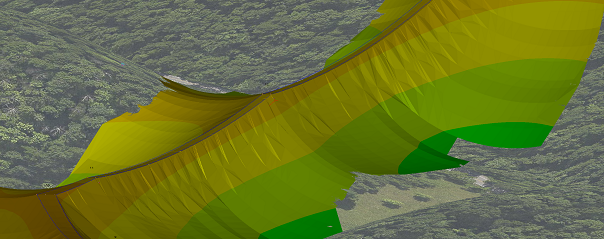

Automate Lightning Protection using the Electrogeometric Method (aka "Rolling Sphere")
Read the Lightning Protection presentation
VIDEO
Added "EN50341-2-22:2016 Poland NNA", "IS 802:2015" and "IEC 60826:2017" wind loading options
Added Create Bundled Cable File tool for easily creating twisted pair, lashed bundle or spacer cable models
Thermal rating calculations according to the "CIGRE Brochure 601 December 2014" methodology.
Numerous enhancements to XY located structures including significantly better drafting

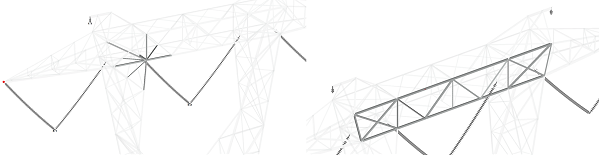

Panel and Connection cuts and Ghost Mode in the graphics
VIDEO
Directly override PLS-CADD Insulator Link information for insulators in Framings
Model Through-Boring Strength Reduction for wood poles
Select textures for each pole or arm from galvanized steel, weathering steel, ductile iron, wood, laminated wood, FRP, etc.
Improved insulator modeling by adding: hardware capacity, control over drawing of weather sheds, and a notes field
Added EN50341-2-22:2016 (Poland NNA), EN50341-3-2:2001 (Belgium NNA), IS802:2015, AS/NZS 7000:2016 and IEC 60826:2017 wind loading options.
More control over STL Export and now directly compatible with Win 10's 3D Builder
Many more improvements described in the detailed change list accompanying upgrades.
Panel and Connection cuts and Ghost Mode in the graphics
VIDEO
Family Manager features: faster analysis, batch XML and .TOW export, faster and more robust family optimization
Improved insulator modeling by adding: hardware capacity, control over drawing of weather sheds, and a notes field
Added EN50341-2-22:2016 (Poland NNA), EN50341-3-2:2001 (Belgium NNA), IS802:2015, AS/NZS 7000:2016 and IEC 60826:2017 wind loading options.
Added or improved numerous European strength checks including: EN50341-2-9:2015-EN1993, EN50341-2-22:2016, EN50341-1:2012 (EN93) and EN50341-1:2012 (ECCS)
More control over STL Export and now directly compatible with Win 10's 3D Builder
Many more improvements described in the detailed change list accompanying upgrades.
