At Power Line Systems we continually improve our software. Below we list some of the more significant enhancements made during the year 2006. Click here for improvements made in 2005 or here for the most recent enhancements.

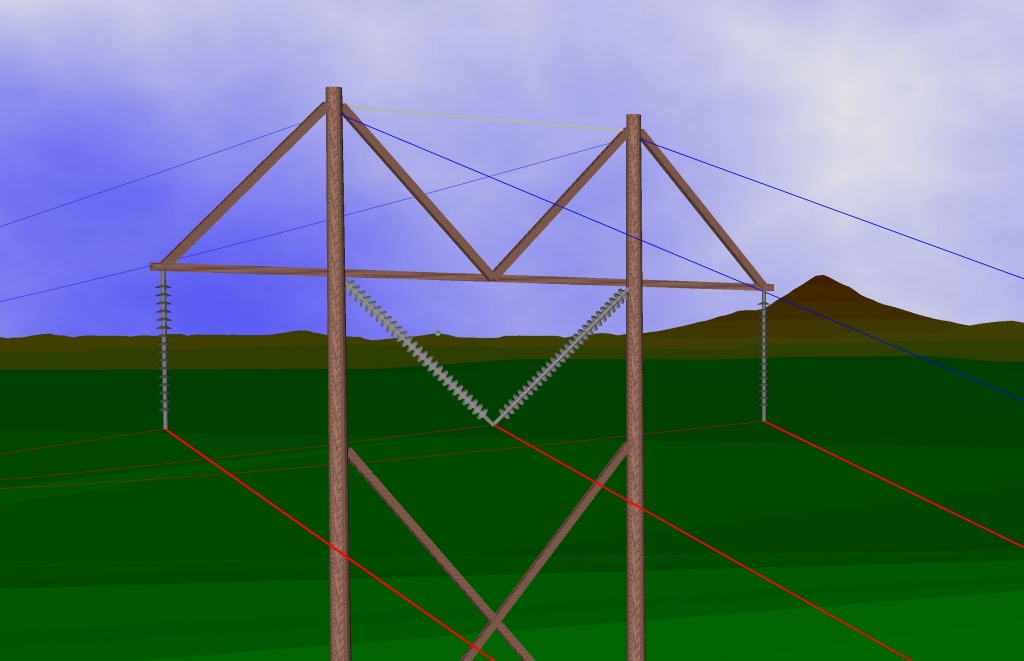

Different insulator types and properties for each phase in a set (for example, IVI in one set)
Minimum vertical load limit or uplift capacity for each phase
4th set of suspension insulator swing and 2-part insulator load angle limits
Graphical indication of attachment positions and allowable swings

Coordinate system and projection documented in project XML file and PI Report
New Structure Longitude and Latitude Report (useful for GPS or government forms like FAA 7460-1)
Improved TerraServer integration (manual coordinate conversion no longer required)

Added LiDAR Color Coding capability to draw much more realistic scenes
Improved drawing performance of 3D view for large LiDAR models

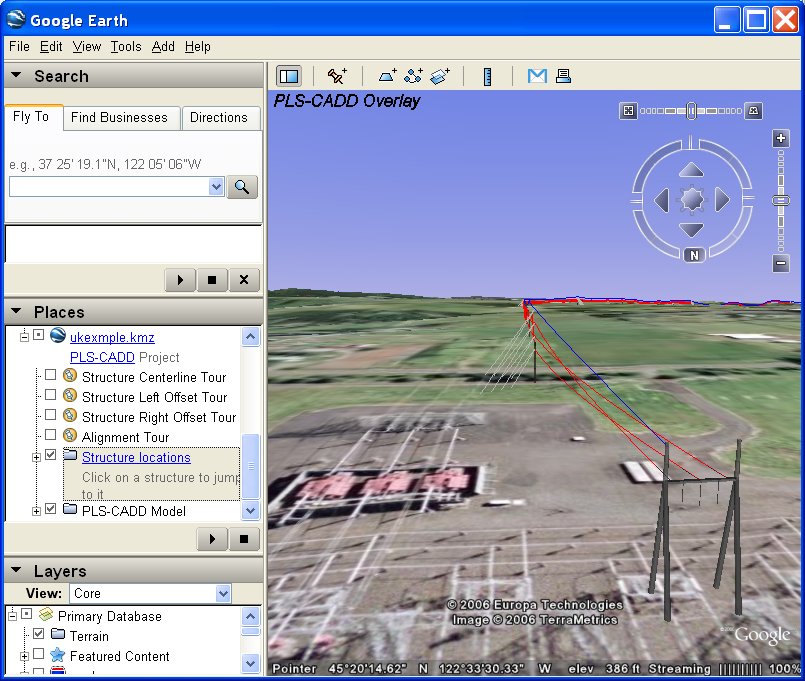

Google Earth integration via the File/Export KMZ command. Structures, wires and even raster imagery can all be faithfully represented in Google Earth
- Click for a sample KMZ file showing an exported line which you can open in Google Earth
- Click for a movie showing how Google Earth can be used to visualize a PLS-CADD line design
Increased maximum number of structure load cases to 256 from 100.
Lines/Reports/Survey Point Clearances command replaces earlier Lines/Reports/Terrain Clearances/By Survey Point and Lines/Reports/Terrain Clearances/By Span commands and adds the following enhancements:
- "Desired Level of Detail" options for reporting on all points or only the one with the lowest clearance in each span
- Ability to restrict report to selected feature codes
- Option to place 3D and profile view markers to graphically indicate positions of clearance violations
- Report includes survey point feature code, point descriptor, X, Y, Z, station and offset fields (also includes option for display of survey point comments)
- Report is now customizable and supports more options for export
Construction staking table can now include detailed structure information (pole property label, weight, length, embedded depth, pole base diameter) for PLS-POLE version 8 structures.

PLS-POLE version 8.10 released
Made extensive changes to support Windows Vista
Added NESC 2007 loading option
PLS-POLE version 8 released

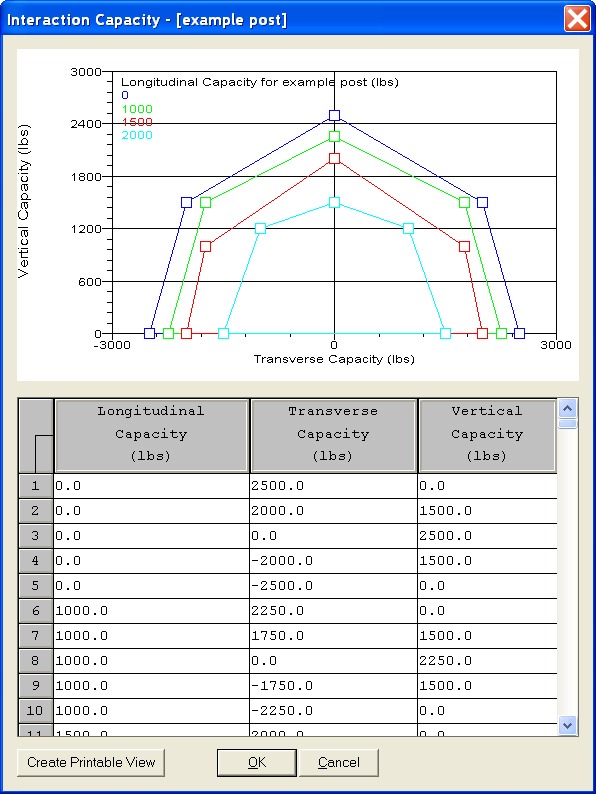

You can now input multiple strength interaction curves (application charts) for post insulators
Removed limitations on use of different insulator types and properties for different phases within a PLS-CADD set
Now allow a fourth set of limits for suspension insulator swings and 2-part load angles
Added loading option for CSA S37-01
Analysis Results report now includes "Loads At Guy Attachments For All Load Cases" for designing guy attachments
Added laminated wood pole element so can analyze and design laminated wood poles as easily as conventional wood poles
File/Batch Modify can now modify many additional items (Foundation Strength, Linear Appurtenances, Analysis Options, etc.)
Reduced clutter in base plate output by removing bend lines that obviously can't control

TOWER version 8.10 released
Made extensive changes to support Windows Vista
Added NESC 2007 loading option
TOWER version 8 released
Removed limitations on use of different insulator types and properties for different phases within a PLS-CADD set
Now allow a fourth set of limits for suspension insulator swings and 2-part load angles
Added loading option for CSA S37-01
Added CSA S37-01 member strength, connection and crossing diagonal checks
Added PN-90/B-03200 (Poland) member strength and connection check
Analysis Results report now includes "Loads At Guy Attachments For All Load Cases" for designing guy attachments
File/Batch Modify can now modify many additional items (Foundation Strength, Linear Appurtenances, Analysis Options, etc.)
Can now generate a "Detailed Angle Member Uprating Report" from the right click menu in the deformed geometry. This report is also available for an entire line in PLS-CADD via Lines/Reports/Structure Usage
Now color code the controlling tension and compression capacities in the Member Capacities and Groups Summary tables
